ProSeries LED User guide

Arm (AWAY)

	+ User Code (or badge)
Launch of the exit delay with slow beeps on the keypad, then accelerated beeps for the last 10 seconds. All the detectors of the partition to which the keypad is attached are activated (motion sensor and perimeter). Depending on the configuration, the code/tag may not be necessary (quick arming).

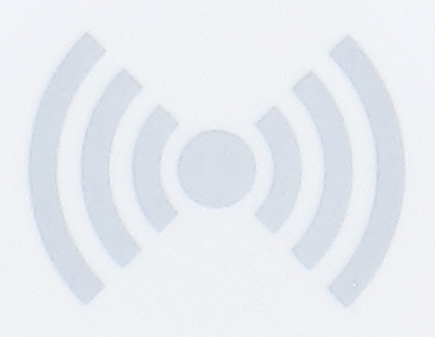

	If a badge is used, present it in front of the bottom of the keyboard. A recognized badge replaces the code

Arm Stay (HOME)

	+ User Code (or badge)
Launch of the exit delay without keypad beeps. All perimeter sensors (doors/windows) of the partition to which the keypad is attached are activated. No motion sensors (passive infrared), including those with the "Armed in night mode" option selected, are activated. Depending on the configuration, the code/tag may not be necessary (quick arming).
	If a badge is used, present it in front of the bottom of the keyboard. A recognized badge replaces the code

Disarm/Stop the Siren

User Code (or badge)
Disarming the system and silencing sirens/beeps when an alarm is triggered. A second disarm sequence will be required in the event of a triggered alarm to clear it before the system can be armed again. Disarming the system within the time set by your installer cancels the alert to the remote monitoring center (30s by default).
	If a badge is used, present it in front of the bottom of the keyboard. A recognized badge replaces the code

Trigger an Alert

+

Simultaneously apply the 2 SOS pendant buttons at 2 seconds.
This function releases a local sound alert or silence according to the configuration performed by your installer.
Please alert the surveillance center with a specific message if your system is surveillance.

Functions of the indicator lights

The LEDs illuminate during entry and exit delays, as well as for 10 seconds after a button is pressed, to preserve battery life.
If all three LEDs flash for 10 seconds when a button is pressed, this means your installer has configured your system to follow the recommendations of the EN50-131 standard.

		Battery level OK
		Replace the batteries
		The system is not ready to be armed
		The system is ready to be armed
		The system is armed
		An alarm is in memory
		No defects present
		A system fault is present
		The keypad is faulty

Keypad locked out

In the event of 5 incorrect codes or number keys being pressed successively without including a correct code more than 23 times, all keypads in the system will be locked out for 5 minutes. If the system is connected to a CMS, information is sent indicating the start and end of the lockout. Arming/disarming remains possible via a remote control or Total Connect.
